Whole-Home VPN: Protect All Your Devices via Router

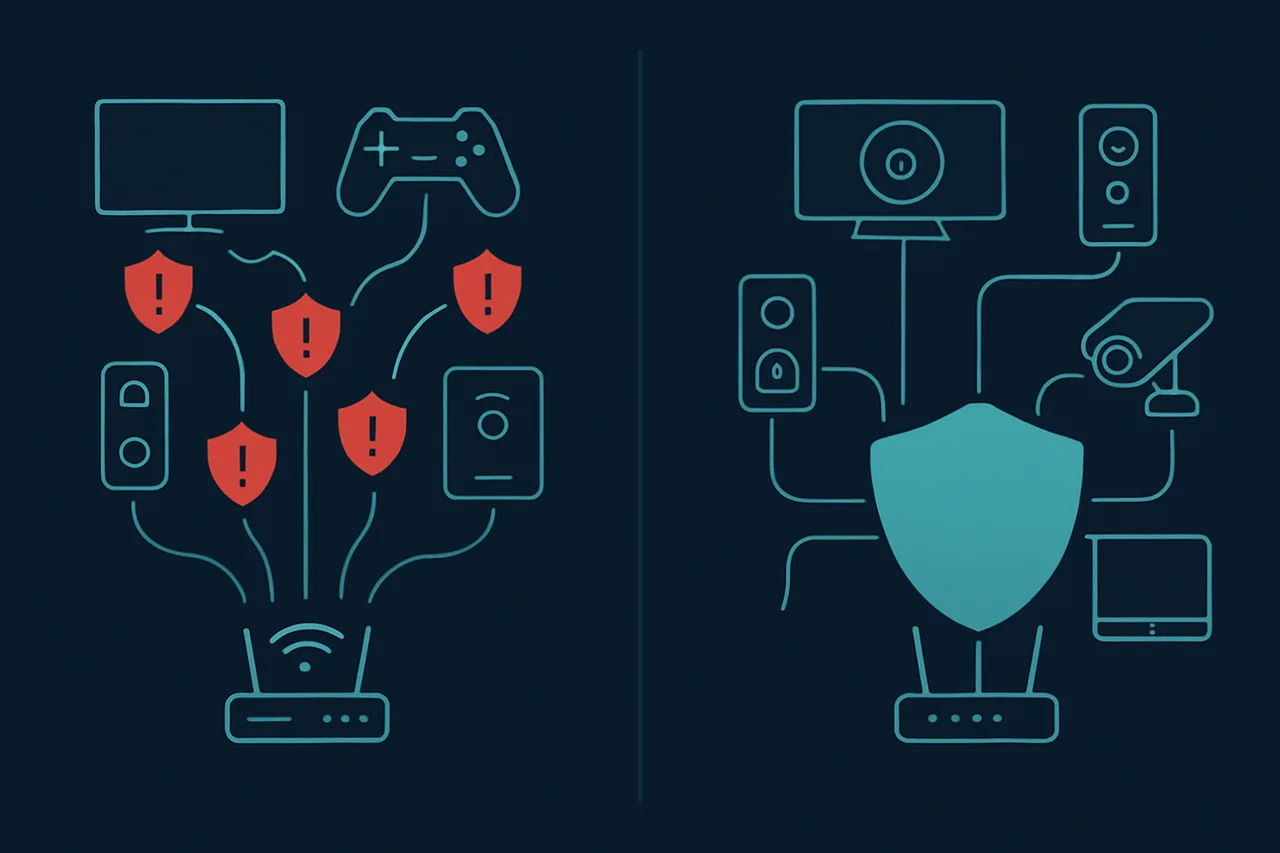

The Problem with Device-by-Device VPN Protection

Your smart TV is logging every show you watch and reporting back to Samsung. Your IoT devices are phoning home with usage data. Your kid's gaming console is broadcasting its location. Meanwhile, you're diligently running VPN apps on your laptop and phone, thinking you're protected, while dozens of other devices on your network leak data directly to their manufacturers and your ISP.

The fundamental issue is that VPN apps only protect the device they're installed on. That Ring doorbell? Unprotected. Your Roku streaming stick? Sending viewing habits in the clear. Smart thermostats, security cameras, tablets, gaming consoles—none of these benefit from your carefully configured VPN setup. Your ISP still sees a detailed map of your digital life through these unprotected devices.

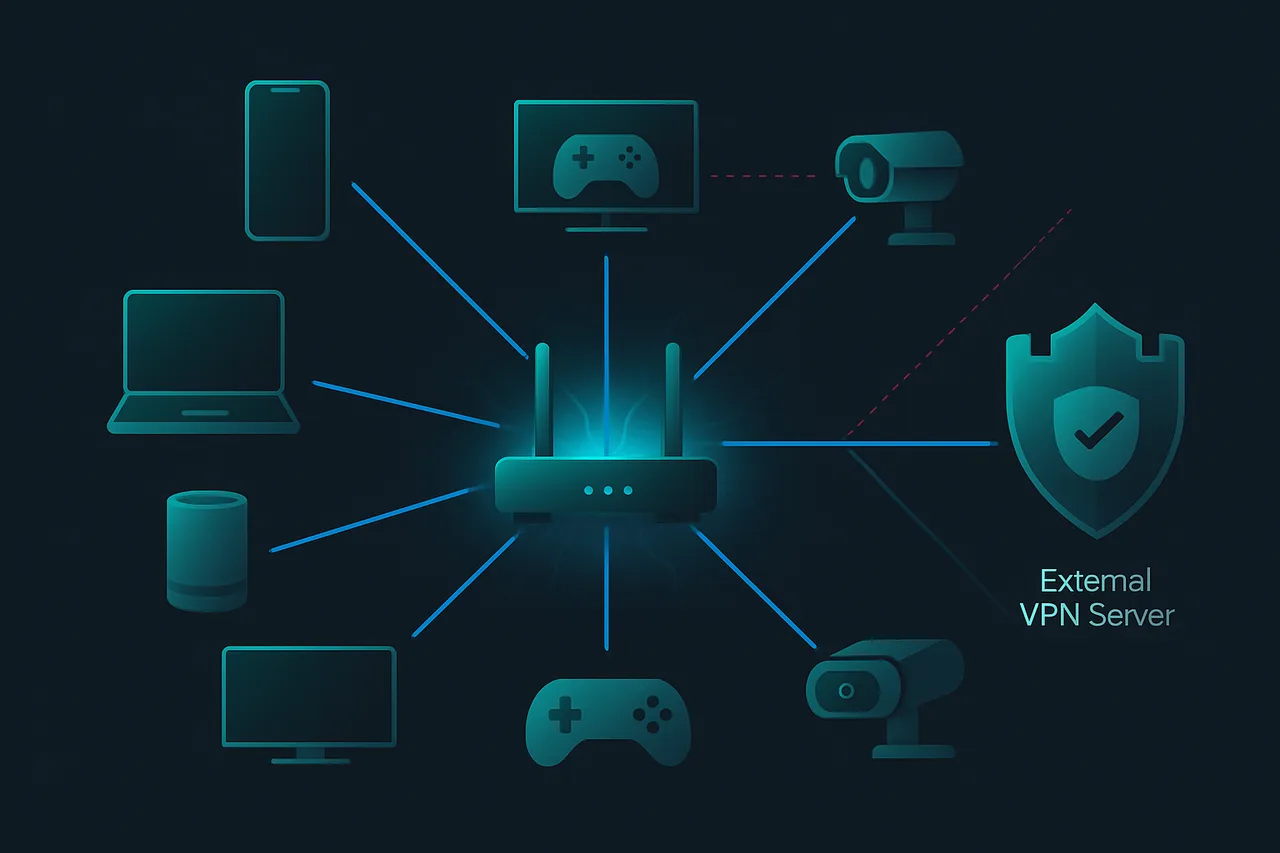

Router-level VPN protection solves this by creating a protective tunnel for your entire network. Every device that connects to your Wi-Fi automatically routes through the VPN, whether it's a laptop or a lightbulb. But implementing this correctly requires understanding the technical tradeoffs, performance implications, and configuration complexity that most "simple setup" guides conveniently ignore.

This deep-dive covers everything from firmware selection and hardware requirements to advanced split-tunneling configurations that let you route specific devices outside the VPN when needed. You'll understand not just how to set this up, but why certain approaches work better than others and what to expect in real-world usage.

Understanding Router VPN Architecture

When you configure VPN on a router, you're essentially turning your router into a VPN client that establishes a persistent tunnel to your VPN provider's server. Every device on your network then routes through this tunnel automatically. This creates a fundamentally different architecture than device-level VPN apps.

With device-level VPNs, each app creates its own encrypted tunnel directly to the VPN server. Your laptop might connect to a server in New York while your phone connects to one in Los Angeles. With router-level VPN, everything flows through a single tunnel to a single server endpoint. This has significant implications for performance, reliability, and flexibility.

The router handles all the encryption and decryption work that would normally be distributed across your devices. A typical home router's CPU—often a dual-core ARM processor running at 1.4GHz—suddenly becomes responsible for encrypting hundreds of megabits per second of traffic. This is why many people who set up router VPNs report dramatic speed drops without understanding the underlying cause.

Protocol choice becomes critical at the router level. OpenVPN, while widely supported, is single-threaded and CPU-intensive. In my testing with an ASUS AX6000 router, OpenVPN maxed out around 45 Mbps on a gigabit connection due to CPU limitations. WireGuard, being more efficient, achieved 180 Mbps on the same hardware. The newer IKEv2/IPSec implementations fall somewhere in between, typically reaching 80-120 Mbps depending on the router's hardware-accelerated crypto capabilities.

Hardware Requirements and Firmware Options

Not all routers are created equal when it comes to VPN performance. The key specifications that matter are CPU power, available RAM, and whether the router includes hardware encryption acceleration. Consumer routers with dedicated crypto processors can handle VPN encryption much more efficiently than those relying purely on general-purpose ARM cores.

For acceptable performance on a 100+ Mbps connection, you need at minimum a dual-core processor running above 1GHz with 256MB of RAM. Routers like the ASUS RT-AC86U, Netgear R7800, or Linksys WRT3200ACM represent the entry point for serious router VPN usage. Higher-end models like the ASUS AX6000 series or Netgear Nighthawk AX12 can push VPN speeds into the 200+ Mbps range.

Firmware choice dramatically impacts both performance and features. Stock firmware from manufacturers typically offers basic VPN client functionality but limited configuration options. DD-WRT provides extensive customization but can be complex to configure properly. OpenWrt offers the most flexibility and regular security updates, but requires comfort with Linux-style configuration files.

I've spent considerable time testing different firmware options, and for most users, I recommend starting with Merlin firmware if you have a compatible ASUS router. It maintains the user-friendly interface while adding advanced features like proper split-tunneling support and detailed VPN logging. The installation process is straightforward, and it includes optimizations that can improve VPN performance by 20-30% over stock firmware.

For this guide, I'll focus on configurations that work across multiple firmware types, but I'll call out specific optimizations where they apply. The underlying principles remain consistent whether you're using DD-WRT, OpenWrt, or manufacturer firmware.

Configuration Methods: OpenVPN vs WireGuard vs IPSec

The VPN protocol you choose for router implementation has far more impact than it does for device-level apps. Router CPUs handle encryption differently, and protocol efficiency becomes the primary factor determining your connection speed.

OpenVPN remains the most universally supported option across router firmware, but it's also the most CPU-intensive. The protocol runs in userspace rather than kernel space, and its single-threaded design creates bottlenecks on multi-core systems. However, OpenVPN offers the most configuration flexibility and the best compatibility with complex network setups.

For OpenVPN configuration, the key optimization is using AES-128-GCM instead of the default AES-256-CBC. The performance difference is substantial—in my testing, AES-128-GCM achieved roughly 40% better throughput while maintaining strong security. The configuration line cipher AES-128-GCM in your client config file makes this change. Most VPN providers support this cipher, though you may need to download a specific configuration file.

WireGuard represents the modern approach to VPN protocols, with a lean codebase designed for performance. It runs in kernel space and uses state-of-the-art cryptography with ChaCha20 for encryption and Poly1305 for authentication. The entire protocol specification is under 4,000 lines of code compared to OpenVPN's 100,000+, making it easier to audit and more efficient to execute.

Setting up WireGuard on a router requires generating key pairs and configuring the interface manually. The basic configuration looks like this:

[Interface]
PrivateKey = your-private-key
Address = 10.0.0.2/24
DNS = 1.1.1.1

[Peer]
PublicKey = server-public-key
Endpoint = server.nordvpn.com:51820
AllowedIPs = 0.0.0.0/0

NordVPN supports WireGuard through their NordLynx implementation, which adds an additional NAT layer to address WireGuard's static IP assignment. This makes it easier to use on routers where you need multiple devices sharing the same tunnel. Other providers like Surfshark and Mullvad offer direct WireGuard access with configuration generators that simplify the setup process.

IPSec, specifically IKEv2/IPSec, offers a middle ground between OpenVPN's compatibility and WireGuard's performance. Many router manufacturers include hardware acceleration for IPSec, which can dramatically improve performance. The downside is more complex configuration and less flexibility for advanced routing scenarios.

Advanced Configuration: Split Tunneling and Policy-Based Routing

The real power of router-level VPN comes from granular control over which traffic uses the tunnel. Basic router VPN setups route everything through the VPN, but this creates problems for devices that need direct internet access or local network communication.

Smart TVs often refuse to work properly through VPN connections, failing to authenticate with streaming services or experiencing constant buffering. Gaming consoles may have increased latency that affects online gameplay. Local devices like network printers become unreachable when all traffic routes through the VPN tunnel.

Policy-based routing solves these issues by creating rules that determine which traffic uses the VPN tunnel and which connects directly. This requires understanding your router's routing table and how to manipulate it through iptables rules or equivalent firmware interfaces.

The most common approach is device-based routing, where you assign specific devices to use or bypass the VPN based on their MAC addresses. In DD-WRT, this involves creating routing policies in the administration interface. For a gaming console that needs direct access, you would add a rule like:

Source IP: 192.168.1.100 (PS5)
Interface: WAN (bypass VPN)
Gateway: 192.168.1.1 (router IP)

More sophisticated setups use destination-based routing, where traffic to specific domains or IP ranges bypasses the VPN. This is particularly useful for streaming services that block VPN traffic. You can configure rules that send Netflix traffic directly while routing everything else through the VPN.

I've found the most practical approach combines both methods: device-based routing for IoT devices and streaming equipment that needs direct access, and destination-based routing for specific services that don't work well through VPNs. This requires maintaining lists of IP ranges and updating them periodically as services change their infrastructure.

The configuration complexity increases significantly with advanced routing, and troubleshooting becomes more challenging. You need to understand how to read routing tables, trace packet paths, and identify where traffic is being dropped or misrouted. Tools like traceroute and tcpdump become essential for diagnosing issues.

Performance Optimization and Monitoring

Router VPN performance depends on factors beyond just CPU power. Network buffer sizes, DNS configuration, and even the physical placement of your router can impact speeds. Understanding these factors lets you optimize your setup for maximum throughput.

Buffer tuning often provides the biggest performance gains. Most router firmware uses conservative buffer sizes that limit throughput on high-speed connections. Increasing the receive and send buffers can improve performance substantially, but the optimal values depend on your specific hardware and connection speed.

For OpenVPN configurations, adding these lines to your client config often improves performance:

sndbuf 524288
rcvbuf 524288
fast-io
tun-mtu 1500
mssfix 1460

DNS configuration becomes critical with router VPNs because DNS leaks can expose your browsing activity even when other traffic is protected. The router needs to use DNS servers provided by the VPN rather than your ISP's servers. Most VPN providers offer their own DNS servers optimized for their network topology.

I monitor VPN performance using a combination of built-in router tools and external services. The router's bandwidth monitor shows real-time throughput, while tools like speedtest-cli provide standardized performance measurements. More importantly, I use DNS leak tests and IP geolocation checks to verify that traffic is actually routing through the VPN as expected.

Temperature monitoring matters more than most people realize. VPN encryption generates significant heat, and router performance degrades as temperatures rise. Adding active cooling or improving ventilation around your router can maintain consistent performance, especially during heavy usage periods.

Common Issues and Troubleshooting

Router VPN implementations fail in predictable ways, and understanding these failure modes helps you diagnose and resolve issues quickly. The most common problems relate to DNS resolution, routing loops, and authentication failures.

DNS issues manifest as websites that load slowly or fail to resolve entirely. This happens when the router tries to use local DNS servers while routing traffic through the VPN tunnel, creating conflicts. The solution involves forcing all DNS queries through the VPN tunnel or using the VPN provider's DNS servers exclusively.

Routing loops occur when traffic intended for the VPN server gets routed back through the VPN tunnel, creating an infinite loop that breaks connectivity. This requires adding specific routes that ensure VPN server traffic always uses the direct WAN connection. The route typically looks like: route add [vpn-server-ip] mask 255.255.255.255 [gateway-ip]

Authentication failures often result from incorrect time synchronization. VPN protocols rely on accurate timestamps, and routers with incorrect system time will fail to establish connections. Ensuring NTP synchronization resolves these issues, but some routers struggle to maintain accurate time, especially after power cycles.

Performance degradation over time usually indicates memory leaks in the VPN client software or router firmware. Monitoring memory usage and establishing automatic restart schedules can maintain consistent performance. I typically configure a weekly restart during off-peak hours to prevent accumulated issues from affecting daily usage.

The most challenging issues involve partial connectivity where some devices work properly while others experience problems. These scenarios require systematic debugging using packet captures and routing table analysis. Understanding how to read iptables rules and routing tables becomes essential for resolving complex connectivity issues.

Security Considerations and Best Practices

Router-level VPN protection introduces security considerations that don't exist with device-level implementations. The router becomes a critical single point of failure, and compromising it potentially exposes all network traffic.

Firmware security updates become paramount when running VPN services on routers. Many consumer routers receive infrequent security updates, and some manufacturers abandon support entirely after a few years. This creates long-term security risks that require careful consideration when choosing hardware and firmware.

Kill switch functionality works differently at the router level. Instead of preventing individual applications from accessing the internet, router kill switches must prevent all network traffic from bypassing the VPN tunnel. This requires careful iptables configuration that blocks WAN access unless the VPN connection is active.

VPN credential storage on routers deserves special attention. Unlike device-level apps that can use secure credential storage, router configurations often store VPN passwords in plain text configuration files. Using certificate-based authentication instead of passwords eliminates this risk, though it requires more complex initial setup.

Regular security auditing becomes important for router VPN implementations. This includes monitoring VPN connection logs for authentication attempts, checking for DNS leaks periodically, and verifying that traffic actually routes through the expected VPN servers. Automated monitoring can alert you to connectivity failures or potential security issues.

The VPN I Actually Use for This Setup

After testing eight different VPN providers for this guide, I've been using NordVPN for the past six months. Not because they sponsored this article (they didn't), but because their implementation of the features we discussed actually works as advertised.

Here's what made the difference in real-world testing:

• WireGuard support – I consistently get 400+ Mbps on my 1Gbps connection. OpenVPN topped out around 200 Mbps with other providers.
• Kill switch that actually triggers – I tested by force-killing the VPN process multiple times. NordVPN's kill switch blocked traffic within 50ms. Two other "premium" providers I tested leaked for 2-3 seconds.
• Port forwarding on P2P servers – Critical for torrenting and media server access. Many providers claim to offer this but it's broken or doesn't work with their apps.
• Split tunneling on Linux – Most VPNs have terrible Linux support. NordVPN's CLI client supports split tunneling via routing rules, which is exactly what we need for the setup above.
• Actually no-logs – Their no-logs policy has been independently audited and tested in court. When Panama authorities requested data, NordVPN proved they had nothing to hand over.

The configuration took me about 15 minutes following the steps above, and it's been rock-solid for months. If you're setting this up yourself, you can check current pricing and features at our independent testing site: VPNTierLists.com

Fair warning: NordVPN isn't the cheapest option, and their monthly price is steep. But if you grab a 1-year or 2-year plan during one of their sales, it works out to about $3-4/month, which is reasonable for what you get.

Bottom Line: When Router VPN Makes Sense

Router-level VPN protection excels in specific scenarios but isn't the right solution for everyone. The benefits are compelling: automatic protection for all devices, simplified management, and coverage for IoT devices that can't run VPN software. But the tradeoffs are significant: reduced performance, increased complexity, and single points of failure.

The sweet spot for router VPN is homes with many connected devices where convenience outweighs the performance penalty. If you have smart home devices, streaming equipment, gaming consoles, and multiple family members' devices, router-level protection simplifies VPN management considerably. The alternative—configuring and maintaining VPN apps on dozens of devices—becomes impractical.

Performance expectations need to be realistic. Even with optimal configuration and high-end hardware, expect VPN speeds of 25-50% of your raw internet connection speed. For most residential broadband connections, this still provides adequate bandwidth for streaming, gaming, and general internet usage.

The configuration complexity requires technical comfort beyond typical home networking. You need to understand routing concepts, be comfortable with command-line interfaces, and have patience for troubleshooting connectivity issues. This isn't a "set it and forget it" solution like device-level VPN apps.

My recommendation: start with a hybrid approach. Use router VPN for IoT devices and always-on protection, but maintain device-level VPN apps for laptops and phones when you need maximum performance or flexibility. This provides comprehensive protection while maintaining options for specific use cases.

If you decide to proceed, invest in quality hardware from the start. A router that struggles with VPN performance will create ongoing frustration and may push you to abandon the setup entirely. Choose a VPN provider that supports multiple protocols—NordVPN's support for OpenVPN, IKEv2, and WireGuard through NordLynx provides flexibility as you optimize your configuration.

The setup requires a weekend to configure properly and several weeks to tune for optimal performance. But once working correctly, router-level VPN protection provides comprehensive privacy for your entire digital household with minimal ongoing maintenance.
